Hilink Mini Optic Switch 1X4 Single Mode FiHigh Channel Isolation With SC LC FC APC PC Connector

Name: Hilink Mini Optic Switch 1X4 Single Mode FiHigh Channel Isolation With SC LC FC APC PC Connector
Brand: HILINK
Price: 1 USD

Buy cheap Hilink Mini Optic Switch 1X4 Single Mode FiHigh Channel Isolation With SC LC FC APC PC Connector product

Brand Name : HILINK

Model Number : HFSW-1*4

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Delivery Time : 1~4working days

condition : New

Wavelength : 850nm ~1650nm

Connector : SC LC FC APC PC

Power MW : max 500

Warranty : 3 years

Operating temperature : 0 ~ +70

Contact Now

Hilink Mini 1×4 Mechanical Fiber Optic Switch (1×8 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, Its mini type with size 35x35x9mm or customer size. it offers low insertion loss,ultra-high reliability, fast switching speed as well as bi-directional performance. The optical switches are widely used for line Protection, Optical Network, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Unmatched Low Cost

·Low Insertion Loss

·High Channel Isolation

·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching

Applications

Optical Network Protection/Restoration

·Optical Signal Routing

·Configurable Optical Add/Drop ·Transmitter and Receiver Protection ·Network Test Systems ·Instrumentation

Product Feature

Specification Performance

Parameters	Unit				FSW-1×4

Wavelength Range	nm	850±40 /		850±40 or		1260~1650
		1310±40		1310±40

Test Wavelength	nm	850 / 1310				1310/1550,1260~1360,1510~1610

Insertion Loss 1, 2	dB				Max:1.4

Return Loss 1, 2	dB				MM ≥ 35	SM ≥ 55

Crosstalk 1	dB				MM ≥ 35	SM ≥ 55

PDL	dB				≤0.1

WDL	dB				≤0.30

Repeatability	dB				≤±0.02

Operating Voltage	V				3.0 or 5.0

Durability	Cycles				≥ 10 Million

Switching Time	ms				≤10

Optical Power	mW				≤500

Operating Temperature	℃				0 ~ +70

Storage Temperature	℃				-40 ~ +85

Relative Humidity	%				5 ~ 95

Dimension	mm		(L)26.0×(W)25.5×(H)10.3 or Customer design

Note: 1. Within operating temperature and SOP.
2.Excluding Connectors.

Pin Configurations

Type	State		Electric Drive				Status Sensor

1×4		Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9

Latching	0(Reset)	GND	GND	GND	V+	Close	Open	Open	Close

	1(Set)	V+	GND	GND	GND	Open	Close	Close	Open
	1(Set)	V+	GND	GND	GND	Open	Close	Close	Open

Non-	0(Reset)	---	---	---	---	Close	Open	Open	Close
latching
latching	1(set)	V+	---	---	GND	Open	Close	Close	Open

Ordering Information:

Fiber Type	Voltage	Switch type	Test Wavelength	TubeType	Fiber length	Connector

SM:SM,9/125	3:3V	L:Latching	850:850nm	25:250um	05:0.5m±5cm	FP:FC/PC,FA:FC/APC

M5:MM,50/125			1310:1310nm	90:90um	10:1.0m±5cm	SP:SC/PC,SA:SC/APC

M6:MM,62.5/125	5:5V	N:Non-latching	13/15:1310/1550nm	X:Others	15:1.5m±5cm	LP:LC/PC,LA:LC/APC

X: Others			X:Others		X:Others	OO:None,X:Others

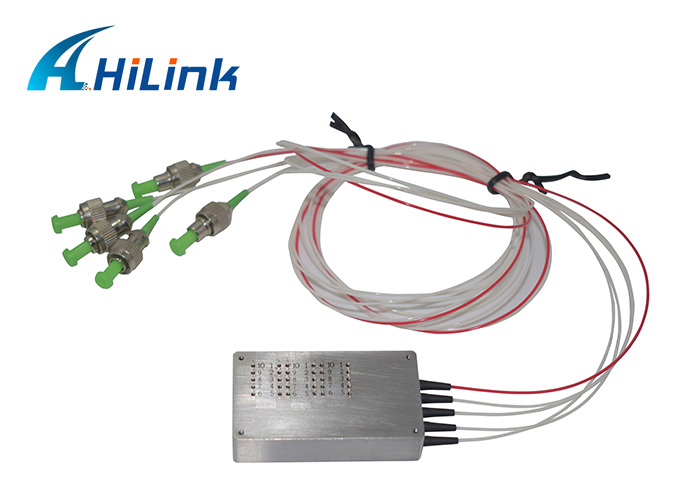

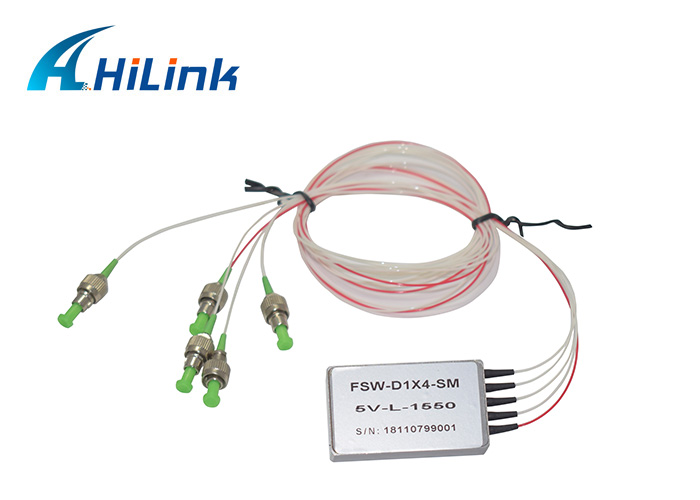

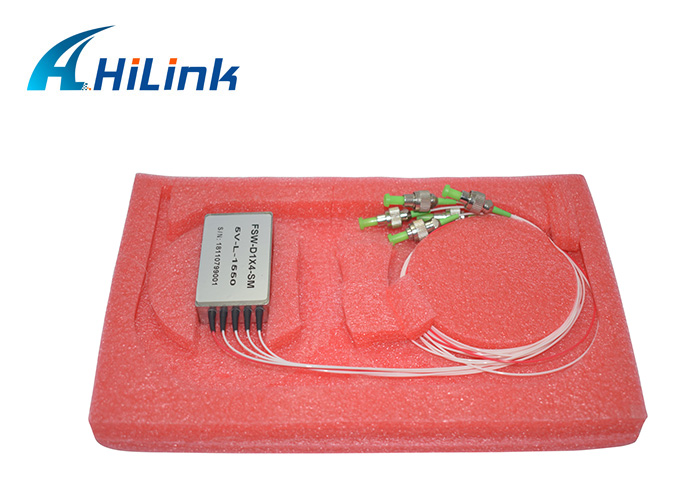

Real photo
