1260 - 1650nm 2 x 2 Optical Switch Low Insertion Loss For Laboratory OADM Latching

Brand Name : HILINK

Model Number : HL-Switch

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 1000pcs/month

Packaging Details : box & carton or customized package

Product Name : 2×2 Bypass Optical switch

Wavelength Range : 1260 ~ 1650nm

Insertion Loss : Type:0.6 Max:0.8

Operating Temperature : -20 ~ +70

Weight : 14g

Warranty : 2 years

Contact Now

2×2 Bypass Optical switch 1260 ~ 1650nm R&D in Laboratory OADM Latching/Non-latching Mechanical Optical Switch

2×2 Bypass Optical switch



Features


·Low Insertion Loss


·Wide Wavelength Range


·Low Crosstalk


·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching




Applications


·R&D in Laboratory


·System Monitoring


·OADM


·MAN (Metropolitan Area Network)




Specifications


ParametersUnitTZ-FSW-2×2B

Wavelength Rangenm1260 ~ 1650

Test Wavelengthnm1310 / 1550

Insertion Loss 1, 2dBType:0.6 Max:0.8

Return Loss 1, 2dBSM ≥ 50

Crosstalk 1dBSM ≥ 55

PDLdB  ≤0.05

WDLdB  ≤0.25

RepeatabilitydB ≤±0.02

Operating VoltageV3.0or 5.0

DurabilityCycles≥ 10 Million

Switching Timems  ≤8

Optical PowermW  ≤500

Operating Temperature℃-20 ~ +70

Storage Temperature℃-40 ~ +85

Relative Humidity%  5 ~ 95

Weightg  14

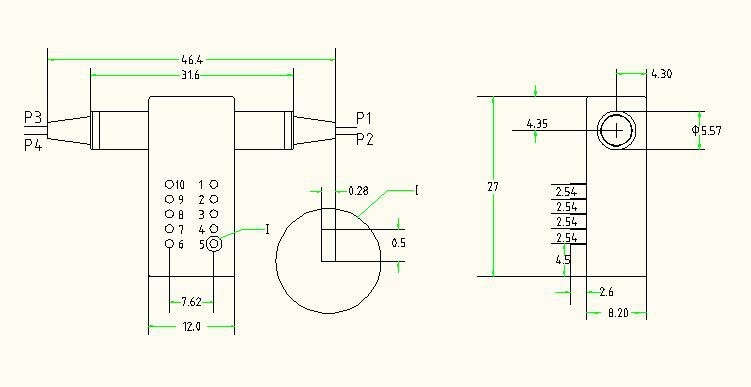

Dimensionmm(L)27.0×(W)12.0×(H)8.2 ±0.2 or Customer design


Note: 1 Within operating temperature and SOP.

2Excluding Connectors.

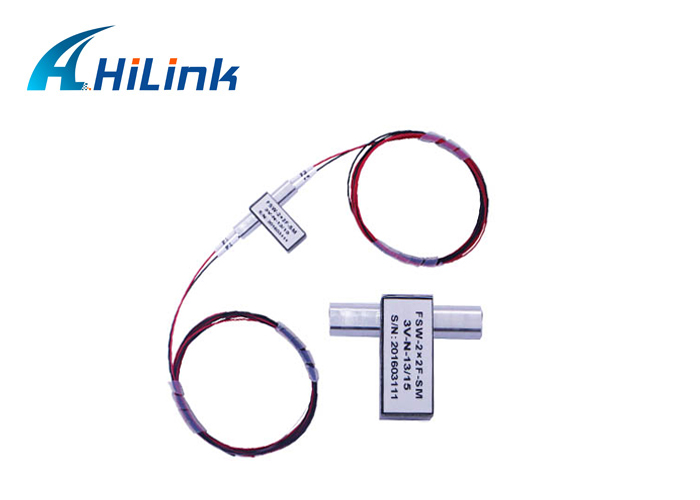

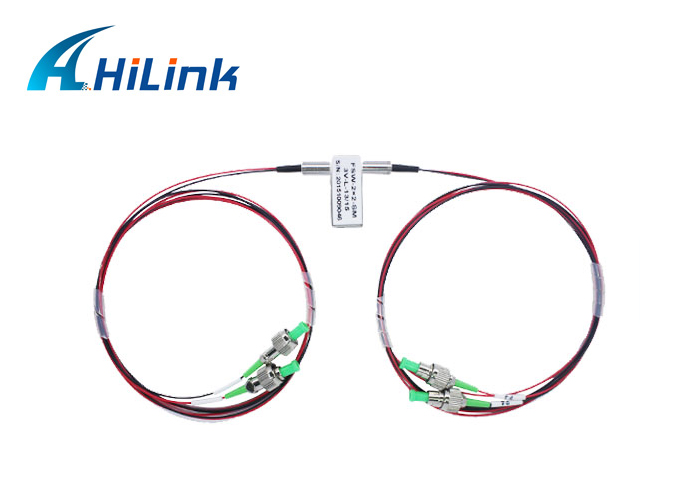

1260 - 1650nm 2 x 2 Optical Switch Low Insertion Loss For Laboratory OADM Latching
