Non Latching 500MW 1550nm 2x2 Bypass Fiber Optic Switch

  • 1
  • 2
  • 3

Brand Name : HILINK

Model Number : HFSW-2X2B

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Delivery Time : 1~4working days

condition : New

Wavelength : 1260nm ~1650nm

Connector : SC LC FC APC PC

Power MW : max 500MW

Warranty : 3 years

Operating temperature : 0 ~ +70

Contact Now

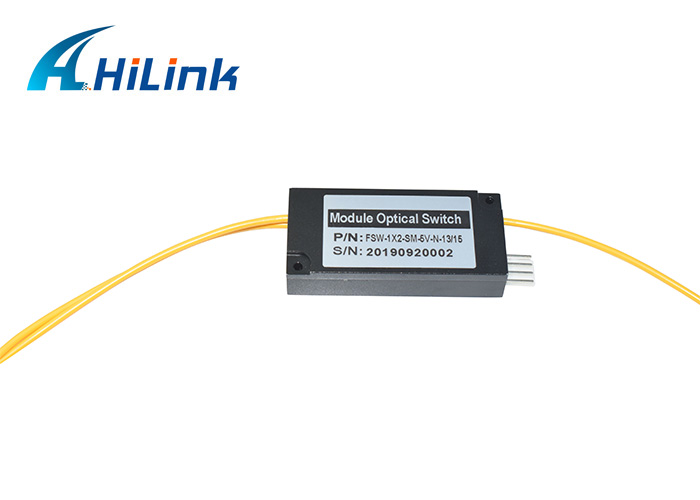

Single Mode Non Latching 1550nm 2x2B Fiber Optic Switch bypass with board PCB Board
Hilink 2x2 Fiber Optic bypass switch module packing in a Metal case available for high operating temperature. Its comes with 1310&1550nm singlemode Non-Latching type SC/APC pigtailed. 2x2 Bypass Fiberoptic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The 2x2 Bypass fiberoptic switches are true switching solution for optical networking applications.


Features



Unmatched Low Cost



Low Insertion Loss



High Channel Isolation



   High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching









Product Feature



Parameters Unit     HI-FSW-2×2ba
  Wavelength Range nm 850±40 / 850±40 or   1260~1650
      1310±40 1310±40
  Test Wavelength nm 850 / 1310       1310/1550,1260~1360,1510~1610
  Insertion Loss 1, 2 dB     Max:1.4
  Return Loss 1, 2 dB     MM ≥ 35 SM ≥ 55
  Crosstalk 1 dB     MM ≥ 35 SM ≥ 55
  PDL dB     ≤0.1
  WDL dB     ≤0.30
  Repeatability dB     ≤±0.02
  Operating Voltage V     3.0 or 5.0
  Durability Cycles     ≥ 10 Million
  Switching Time ms     ≤10
  Optical Power mW     ≤500
  Operating Temperature ℃     0 ~ +70
  Storage Temperature ℃     -40 ~ +85
  Relative Humidity %     5 ~ 95
  Dimension mm   (L)26.0×(W)25.5×(H)10.3 or Customer design

Note: 1. Within operating temperature and SOP.
          2.Excluding Connectors.





Non Latching 500MW 1550nm 2x2 Bypass Fiber Optic Switch

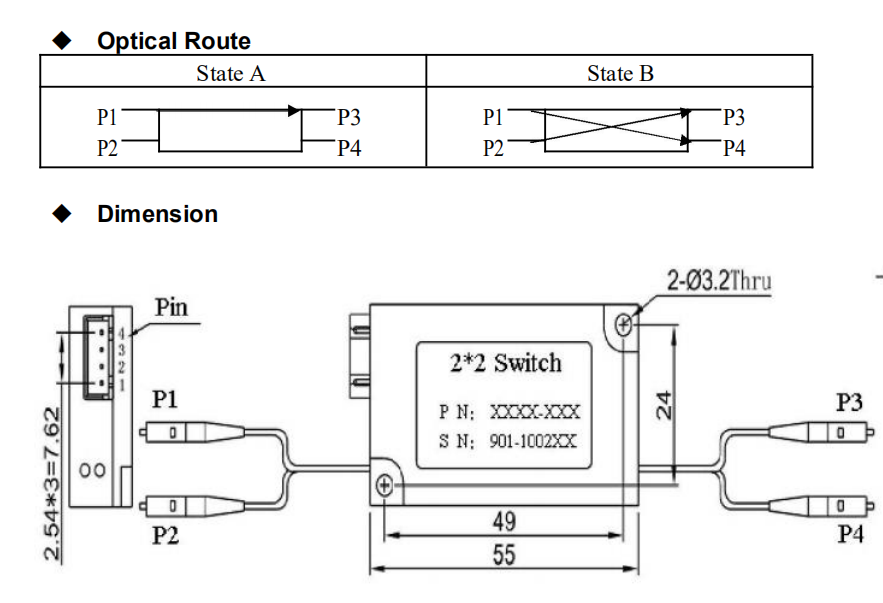

PN Optical Path Electric Drive Status Sensor Optical Route
HL-FSW-2×2BA PIN1 PIN3 PIN2 PIN4
Non-latching P1—P3 -- -- Close /



Non Latching 500MW 1550nm 2x2 Bypass Fiber Optic Switch



 Bypass
P1—P4
P2—P3		 V+ GND Open /



Non Latching 500MW 1550nm 2x2 Bypass Fiber Optic Switch



 Normal




Applications



Optical Network Protection/Restoration



·Optical Signal Routing



·Configurable Optical Add/Drop ·Transmitter and Receiver Protection ·Network Test Systems ·Instrumentation
