1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance

  • 1
  • 2

Brand Name : HILINK

Model Number : HL-XFP-10G-ER

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union , L/C ,AliExpess , Alipay , etc

Supply Ability : 1500 pieces / month

Delivery Time : 2-5 days

Packaging Details : Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Module Name : XFP-10G - ER

Data Rate (max) : 10.3125Gbps

Transmission distance : 40Km

Wavelength : 1550nm

Connector : Duplex LC Connector

Fiber Type : Single - mode

Price : Negotiable

Contact Now

This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance


DESCRIPTION :

l The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.

FEATURES :
  • Hot pluggable
  • Support 9.95Gb/s to 11.1Gb/s bit rates
  • Below 3.5W power dissipation
  • XFP MSA package with duplex LC connector
  • Digital Diagnostic Monitor Interface
  • Very low EMI and excellent ESD protection
  • Cooled 1550nm EML laser and PIN ROSA
  • Up to 40KM for single mode fiber
  • operating temperature range 0°C to 70°C
  • No reference clock requirement
APPLICATION :
  • 10G BASE-LR/LW Ethernet
  • SONET OC-192/SDH STM-64
  • Other optical links
STANDARD :
  • XFP MSA compliant
  • IEEE802.3ae-2002 compliant
  • ITU-T G.959 and G.691 compliant
  • GR-253-CORE compliant
  • RoHS compliant




Transmitter (0~70℃@9.953Gb/s~11.1Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate   9.95   11.1 Gb/s
Ave. Output Power Po -1   2 dBm 1
Output Centre Wavelength λ 1530   1565 nm
Disable Power Poff     -30 dBm
Extinction Ratio ER 8.2     dB 1
Sidemode Supression Ratio   30     dB
Rise/Fall Time (20%~80%) Tr/Tf     45 ps
Dispersion penalty       2 dB 1
Generation Jitter 1(20KHZ-80MHZ)       0.3 UIp-p 1
Generation Jitter 2(4MHZ-80MHZ)       0.1 UIp-p 1
Optical Eye Mask 1   GR-253-CORE/ITU-T G.691 1
Optical Eye Mask 2   IEEE802.3ae 2
Reeceiver (0~70℃@9.953Gb/s~11.1Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate   9.95   11.1 Gb/s
Overload Po 0.5     dBm
Input Centre Wavelength λ 1270   1600 nm
Receiver Sensitivity Pmin     -16 dBm 1
Stressed Sensitivity in OMA       -11.3 dBm 2
LOS Assert LosA -30     dBm
LOS De-assert LosD     -18 dBm
LOS Hysteresis   0.5   4 dB
Optical Return Loss   14     dB
Jitter Tolerance   GR-253-CORE/ITU-T G.783 1

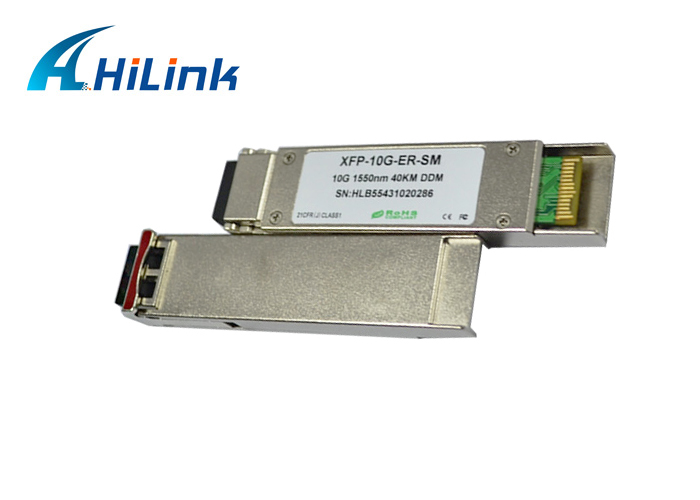

PRODUCT SHOW :
1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance
