10Gbase XFP-SR Multimode 300m XFP Optical Transceiver

  • 1
  • 2
  • 3

Brand Name : HILINK

Model Number : HL-XFP-10G-SR

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union , L/C ,AliExpess , Alipay , etc

Supply Ability : 1500 pieces / month

Delivery Time : 2-5 days

Packaging Details : Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Price : Negotiable

Module Name : XFP-10G - SR

Data Rate (max) : 10Gbps

Transmission distance : 300m

Wavelength : 850nm

DDM/ DOM : Yes

Fiber Type : Multi-mode

Contact Now

SFP-BX-U-10 1.25G Tx1310nm/Rx1550nm 10km DOM BiDi SFP LC
SFP-BX-D-10 1.25G Tx1550nm/Rx1310nm 10km DOM BiDi SFP LC
SFP-BX-U-S20 1.25G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
SFP-BX-D-S20 1.25G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
SFP-BX-U-S40 1.25G Tx1310nm/Rx1550nm 40km DOM BiDi SFP SC
SFP-BX-D-S40 1.25G Tx1550nm/Rx1310nm 40km DOM BiDi SFP SC
SFP-BX-U-S80 1.25G Tx1490nm/Rx1550nm 80km DOM BiDi SFP SC
SFP-BX-D-S80 1.25G Tx1550nm/Rx1490nm 80km DOM BiDi SFP SC
SFP-BX-U-L120 1.25G Tx1490nm/Rx1550nm 120km DOM BiDi SFP LC
SFP-BX-D-L120 1.25G Tx1550nm/Rx1490nm 120km DOM BiDi SFP LC
SFP-10G-SR Multimode Dual LC 10G 850nm 300m SR SFP+
XFP-10G-LR Dual LC 10G 1310nm 20km LR XFP+
SFP-10G-ER Dual LC 10G 1550nm 40km ER SFP+
SFP-10G-ZR Dual LC 10G 1550nm 80km ZR SFP+
SFP-10G-ZR100 Dual LC 10G 1550nm 100km ZR SFP+

This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


10Gb / s XFP transceiver XFP-10G-MM-SR 300m , 850nm

DESCRIPTION :

10G 850nm XFP transceivers are designed for 10G Ethernet 10G BASE-SR/SW per 802.3ae, and it can support data-rate from 9.953Gb/s to 11.1Gb/s.Digital diagnostics are available via I2C interface as specified in the XFP MSA.

FEATURES :

  •  Hot pluggable
  •  Support 9.95Gb/s to 11.1Gb/s bit rates
  •  Below 2.5W power consumption
  •  XFP MSA package with duplex LC connector
  •  Digital Diagnostic Monitor Interface
  •  Very low EMI and excellent ESD protection
  •  Un-cooled 850nm VCSEL laser
  •  +3.3V single power supply
  •  operating temperature range 0°C to 70°C
  •  No reference clock requirement


APPLICATION :

  •  10G BASE-SR/SW Ethernet
  •  1200-Mx-SN-1 10G Fiber Channel
  •  Other optical links​
Optical Characteristics (TOP = 0to 70 °C, VCC3 = 3.13 to 3.47 Volts)
Transmitter (0~70℃@9.953Gb/s~11.3Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate   9.95   11.1 Gb/s
Ave. Output Power Po -8.2   -1 dBm 1
Output Centre Wavelength λ 840   860 nm
Disable Power Poff     -30 dBm
Extinction Ratio ER 6.0     dB 1
Spectral Width Δλ     1 nm
Rise/Fall Time (20%~80%) Tr/Tf     45 PS
Optical Modulation Amplitude OMA -5.2     dBm 2
Dispersion penalty       1 dB 1
Generation Jitter 1(20KHZ-80MHZ)       0.15 UIp-p 1
Generation Jitter 2(4MHZ-80MHZ)       0.08 UIp-p 1
Optical Eye Mask 1   GR-253-CORE/ITU-T G.691 1
Optical Eye Mask 2   IEEE802.3ae 2
Receiver (0~70℃@9.953Gb/s~11.3Gb/s)
Parameter Symbol Min. Typ. Max. Unit Note
Operating Date Rate   9.95   11.1 Gb/s
Overload Po -1     dBm
Input Centre Wavelength λ 840   860 nm
Minimum Sensitivity Pmin     -9.9 dBm 1
LOS Assert LosA -25     nm
LOS De-assert LosD     -15 dBm
LOS Hysteresis   0.5     dBm
Optical Return Loss   14     dB
Jitter Tolerance   GR-253-CORE/ITU-T G.783 1



10Gbase XFP-SR Multimode 300m XFP Optical Transceiver

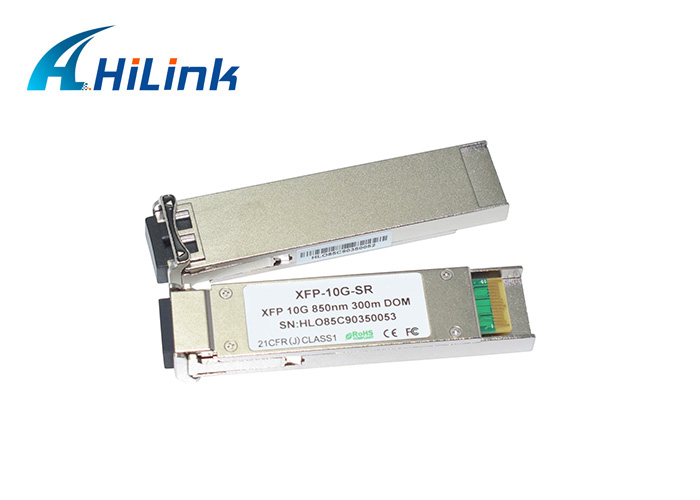

PRODUCT SHOW :

10Gbase XFP-SR Multimode 300m XFP Optical Transceiver10Gbase XFP-SR Multimode 300m XFP Optical Transceiver


10Gbase XFP-SR Multimode 300m XFP Optical Transceiver
