400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

  • 1
  • 2

Brand Name : Hilink

Model Number : QSFPDD-400G-SR

Certification : CE Rohs

Place of Origin : Guangdong, China

MOQ : 1 pieces

Price : Send Inquiry know latest price

Payment Terms : T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability : 2000 Pieces/Week

Delivery Time : 5-8 working day

Packaging Details : Plastic box+Carton

Product Name : QSFPDD-400G-SR

Data Rate : 400G

Reach : 100M

Operating Temperature : 0 to 70℃

Contact Now

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module





General Description

This  product  is a  parallel 400Gb/s Octal Small  Form-factor  Pluggable  (OSFPoptical  module.  It provides increased port density and total system cost savingsThe OSFP full-duplex optical module offers independent transmit and receive channelseach capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.

An optical fiber cable with an MTP/MPO-16 connector can be plugged into the OSFP SRmodule receptacleProper alignment is ensured by the guide pins inside the receptacleThe cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an OSFP MSA-compliant edge type connector.

The central wavelengths of all the 8 parallel lanes are 850nmIt contains an optical MPO-16 connector for the optical interface and a 60-pin connector for the electrical interfaceHost FEC is required to support up to 100m OM3 multi-mode fiber transmission.

The product is designed with form factoroptical/electrical connection and digital diagnostic interface according to the OSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Features

    OSFP MSA compliant

    8 parallel lanes on 850nm center wavelength

    Compliant to IEEE 802.3bs Specification

    Up to 100m transmission on multi-mode fiber (MMFOM3 with FEC

    Operating case temperature: 0 to 70oC

    8x53.125Gb/s electrical interface (400GAUI-8)

    Data Rate 53.125Gbps (PAM4) per channel.

    Maximum power consumption 12W

    MPO-16 connector

    RoHS compliant


Application

    Data Center Interconnect

    400G Ethernet

    Infiniband interconnects

    Enterprise networking

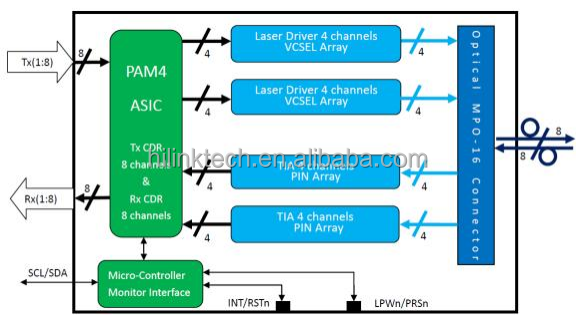

Transceiver Block Diagram

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

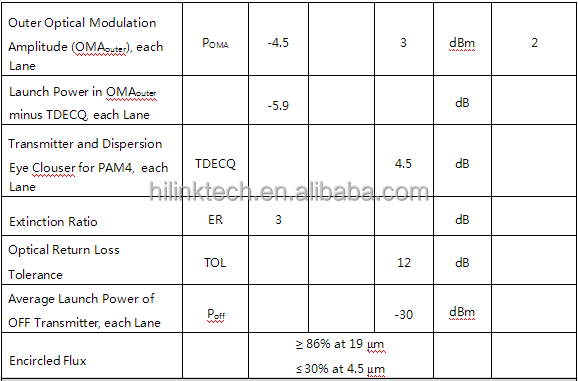

 Optical Characteristics

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

Notes:

1.   Average launch powereach lane (minis informative and not the principal indicator of signal strengthA transmitter with launch power below this value cannot be compliant; howevera value above this does not ensure compliance.

2.    Even if the TDECQ < 1 dB , the OMAouter (min) must exceed the minimum value specified here.

3.    The receiver shall be able to toleratewithout damage, continuous exposure to an optical input signal having this average power level.

          4.   Average receive powereach lane (minis informative and not the principal indicator of signal strengthA received power below this value cannot be compliant; however, a value above this does not ensure compliance.

5.    Receiver Sensitivity OMAoutereach lane (max) is informative and is defined for a BER of 2.4x10-4.

6.    Measured with conformance test signal at receiver input for the BER of 2.4x10-4.

7.    These test conditions are for measuring stressed receiver sensitivity. They are not characteristics of the receiver.


Warranty:

We promise all the advertised optical transceivers are brand new with new components and parts.

We absolutely never use old and refurbished materials.

All the optical transceivers have been through functional test and aging test.

We provide 3 years warranty for all the optical transceivers from the date of shipment.

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
