ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector

  • 1
  • 2

Brand Name : HILINK

Model Number : HL-DW- 8CH

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000pcs/month

Delivery Time : 1-6working days

Packaging Details : Box & carton or customized package

Product name : 1*8CH DWDM

Channel : 8CH

Channel Spacing : 100GHZ

Connector : LC/APC

Fiber Type : Single fiber

Warranty : 1 year

Contact Now

ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector




DETAILED  SPECIFICATION



Parameters
Channel Space (GHz) 100 (standard) 200
Channel Number 1*4 1*8&16 1*40 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.8 3.0 3.5 1.7 2.9 3.4
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U

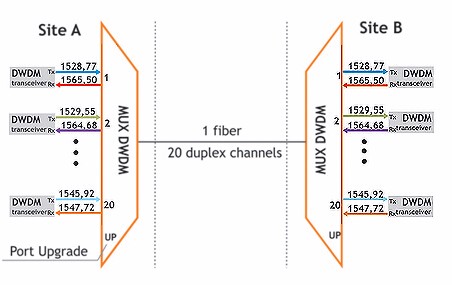

USING SOLUTION

ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector

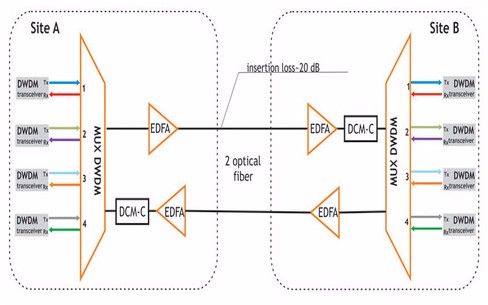

DWDM Mux Demux with EDFA

ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector



PRODUCT SHOW



ABS box 100Ghz 1 x 8 DWDM Mux Demux modules with LC / APC connector





DWDM Mux/Demux Module


HL-DWMUX40-XX-LCSR 40 channel DWDM MUXDEMUX Customized wavelength
HL-DWMUX08-XX-LCSR 8 channel DWDM MUXDEMUX Customized wavelength
HL-DWMUX08-XX-LCSRM 8+1 channel DWDM MUXDEMUX

Customized wavelength with

one monitor
HL-DWMUX04-XX-LCSR 4 channel DWDM MUXDEMUX Customized wavelength
