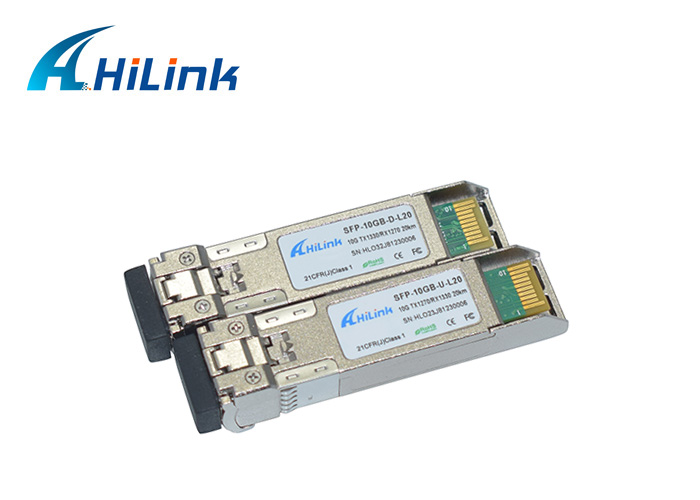

10G SFP+ Transceiver Single Fiber LC/SC Connector 1270/1330nm 20km DOM
Feature
Up to 11.1Gbps Data Links
Up to 20km transmission on SMF
Power dissipation<1.5W
1270nm DFB laser and PIN receiver
2-wire interface with integrated Digital Diagnostic monitoring
EEPROM with Serial ID Functionality
Hot-pluggable SFP+ footprint
Compliant with SFP+ MSA with LC connector
Single + 3.3V Power Supply
Case operating temperature: 0ºC~+70ºC
Applications:
10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
STANDARD
Compliant with SFF-8472
Compliant to SFF-8431
RoHS Compliant.
Description
SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5
Parameter
| Datarate | 10Gbps | Fiber Type | SMF |
| Transmitter | DFB | Receiver | PIN |
| Distance | 20Km | Wavelenth | 1270/1330nm |
| DDM/DOM | Yes | Connector | LC/SC |
| Voltage Supply | 3.3V | Compatibility | Cisco/Huawei/Mikrotik etc |
| Operating Temperature | 0℃~ +70℃ | Certification | CE/FCC/RoHS |
SFP+ Transceivers
| Cisco Part Number | Application | Data Rate | Wavelength | Distance | Connector Type |
| SFP-10G-SR | SFP+ 10GBASE-SR | 10G | 850nm | 300m | LC |
| SFP-10G-LR | SFP+ 10GBASE-LR | 10G | 1310nm | 10km | LC |
| SFP-10G-LRM | SFP+ 10GBASE-LRM | 10G | 1310nm | 220m | LC |
| SFP-10G-ER | SFP+ 10GBASE-ER | 10G | 1550nm | 40km | LC |
| SFP-10G-ZR | SFP+ 10GBASE-ER | 10G | 1550nm | 80km | LC
|
