C Band ITU EDFA DWDM DCM WDM Solution OADM Module Long Haul Transfer Design

Name: C Band ITU EDFA DWDM DCM WDM Solution OADM Module Long Haul Transfer Design
Brand: HILINK
Price: 1 USD

Buy cheap C Band ITU EDFA DWDM DCM WDM Solution OADM Module Long Haul Transfer Design product

Brand Name : HILINK

Model Number : Xwdm-NCHxx

Certification : CE FCC Rohs

Place of Origin : China

MOQ : 1pcs

Key words : WDM EDFA

Wavelength B : C band ITU

Solution : EDFA

Application : 100km transfer

Price : Negotiable

Contact Now

C Band ITU EDFA DWDM DCM WDM Solution OADM Module Long Haul Transfer Design

The DWDM passive OADM modules are protocol-transparent and invisible to both the network and the users, each DWDM passive OADM uses wavelengths that fall within the ITU-T G.694.2 DWDM grid standard from C17 to C61(1563.86~1528.77nm) with 0.8 nm spacing.

Example for EDFA WDM Specification

Index			Supplement
Min.	Typ.	Max.	Supplement
Optical feature	Operating wavelength range	(nm)	1540		1563	CATV
	Input power	(dBm)	-10		+7.5
	Total output power1)	(dBm)	27		32	1U
	Total output power1)	(dBm)	28		37	2U
	Number of output port	(pcs)	4		16	1U, SC/APC, LC/APC
			8		32	1U, LC/APC
			8		32	2U, SC/APC, LC/APC
			16		64	2U, LC/APC
	Difference of each output power	(dB)	-0.5		+0.5
	Output power adjustable range	(dBm)	-6		0
	Noise figure (Pin=0dBm)	(dB)		4.5	5.0	SOA5437
	Polarization dependence loss	(dB)			0.3
	Polarization dependence gain	(dB)			0.4
	Polarization mode dispersion	(ps/nm)			0.3
	Input/output isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	55			APC
General feature	Serial interface		RS232
	SNMP network management interface		RJ45
	Power supply	(V)	90		265	220VAC
	Power supply	(V)	30		72	-48VDC
	Power consume	(W)			150
	Work temp.	( °C )	-5		65
	Storage temp.	( °C )	-40		80
	Relative humidity	(%)	5		95
	Size (W) × (D) × (H)		19 × 14.3 × 1.75 ( " ) 483 × 363 × 44 ( mm )			1RU (19")
	Size (W) × (D) × (H)		19 × 14.7 × 3.5 ( " ) 483 × 373 × 89 ( mm )			2RU (19")

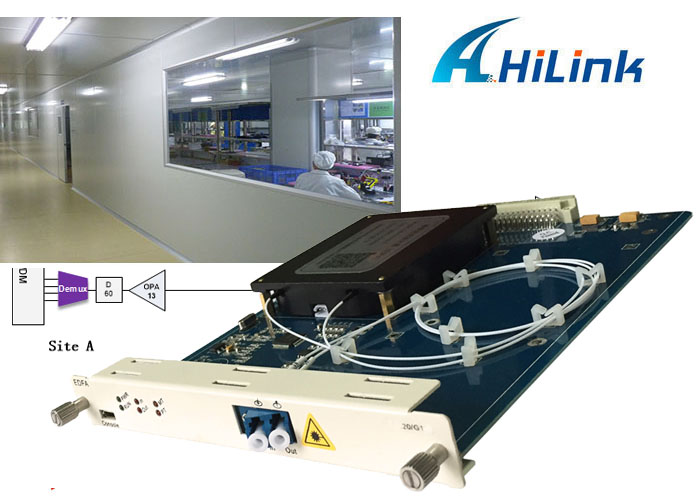

Optical add drop multiplexer function

C Band ITU EDFA DWDM DCM WDM Solution OADM Module Long Haul Transfer Design

Under presently DWDM technology of SFP 10G transfer, the max reach is 100KM, and the DCM EDFA is necessary

For any question or concerns about the solution, please contact us for details
