10G SFP 60KM BIDI 60KM 10G-ER4-60KM SMF 1270nm/1330nm Compatible Brand
General
HLSBxx1XL-CD60 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The HLSBxx1XL-CD60 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
Features
Supports 9.95 to 10.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Uncooled 1270nm DFB transmitter, 1330nm APD photo-detector
Uncooled 1330nm DFB transmitter, 1270nm APD photo-detector
Applicable for 60km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Application
10.3125Gbps Ethernet
Other Optical Links
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |

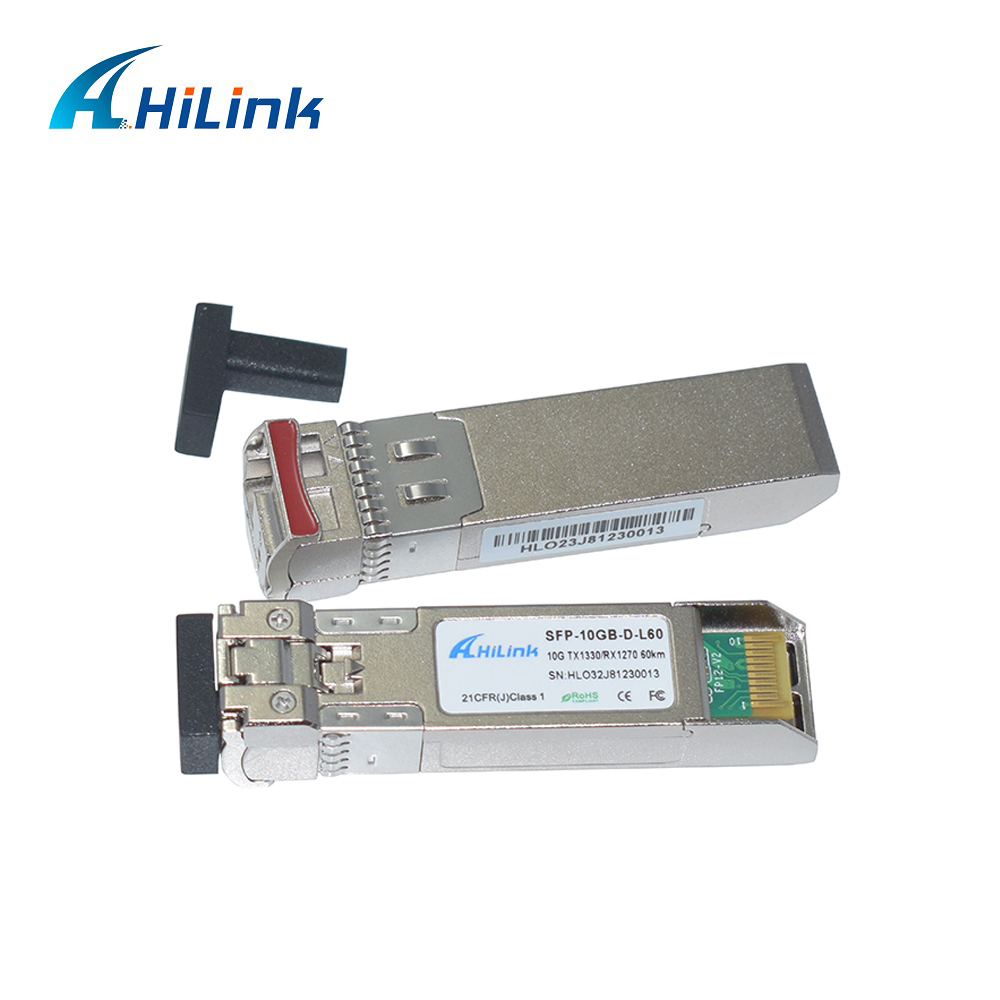

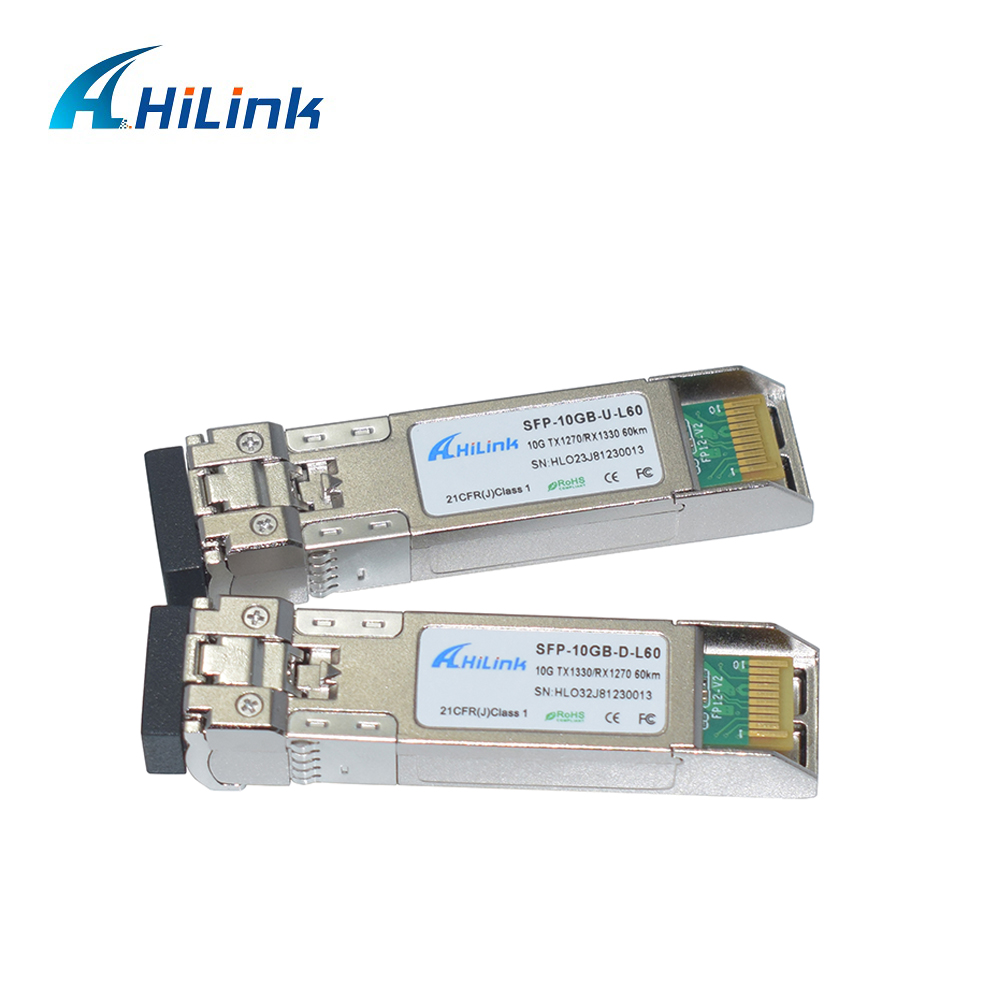

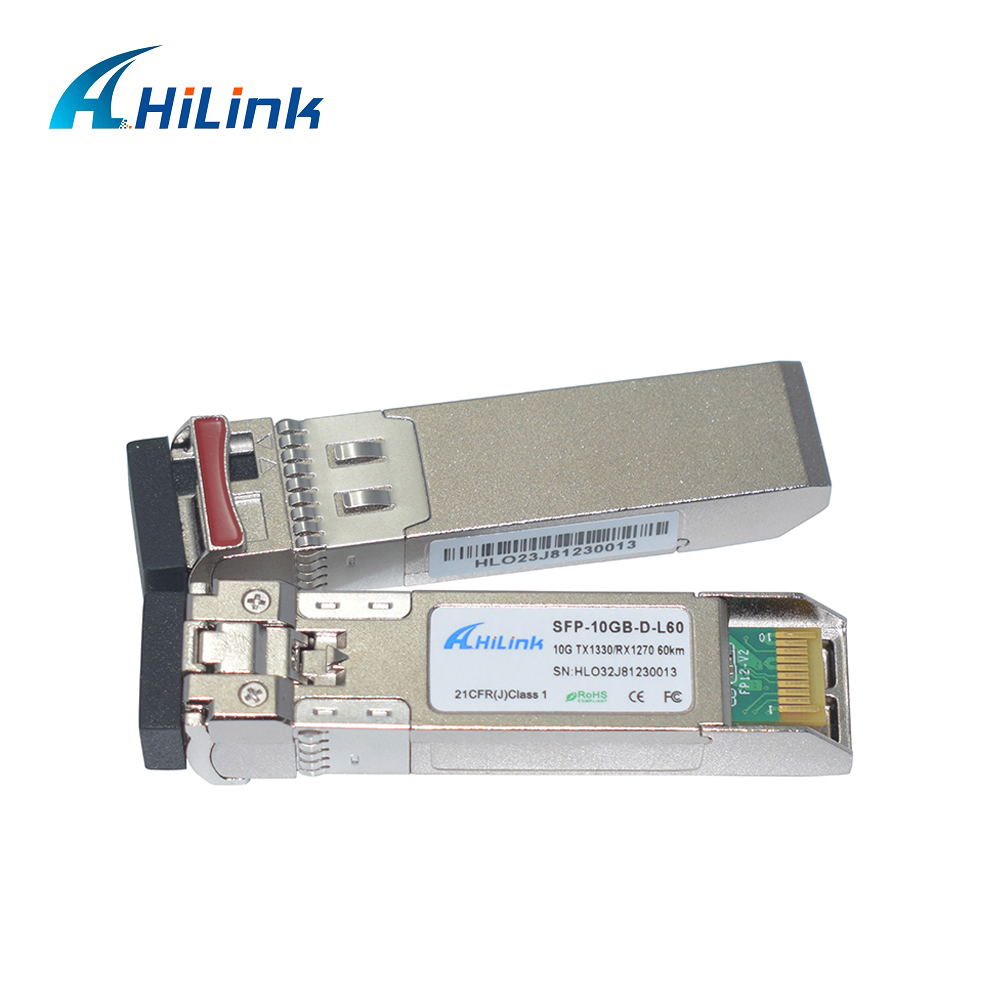

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1260 | 1270 | 1280 | nm | |
| 1320 | 1330 | 1340 | |
| Ave. output power (Enabled) | PAVE | 1 | | 5 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 5 | 6 | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1320 | 1330 | 1340 | nm | |
| 1260 | 1270 | 1280 | |
| Receiver Sensitivity | PSEN1 | | | -20 | dBm | 2 |
| Sensitivity over 60Km fiber | PSEN2 | | | -18 | dBm | 2 |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -22 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Differential data input swing | VIN,PP | 180 | | 700 | mVpp | 1 |
| Transmit Disable Voltage | VD | VCC-0.8 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+0.8 |
| Input differential impedance | Rin | | 100 | | Ω | |
| Receiver |
| Differential data output swing | Vout,pp | 300 | | 850 | mVpp | 2 |
| Output rise time and fall time | Tr, Tf | 28 | | | Ps | 3 |
| LOS asserted | VLOS_F | VCC-0.8 | | Vcc | V | 4 |
| LOS de-asserted | VLOS_N | Vee | | Vee+0.8 | V | 4 |
Notes:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.

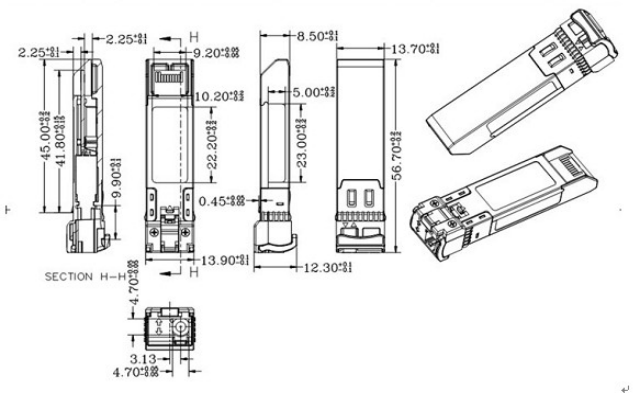

Package Dimensions
Ordering Information
| Part Number | Description |
| HLSBxx1XL-CD60 | SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm,60km, 0~70℃, with DDM |
| HLSB321XL-CD60 | SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, 0~70℃, with DDM |
| HLSB231XL-ID60 | SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm, 60km, -40~80℃, with DDM |
| HLSB321XL-ID60 | SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, -40~80℃, with DDM |
