25G SFP28 LR 1310nm 10KM SMF LC Duplex DDM Ethernet SFP Transceiver
Hilink 25G SFP28 LR 10km optical transceivers are designed for 25GBASE-LR SFP28 Ethernet and CPRI/eCPRI links ,reach up to 20km over Single-Mode Fiber (SMF).
Features
-
Hot-pluggable SFP28 form factor
-
Full-duplex transceiver module
-
DFB laser and PIN receiver
-
Compliant with SFP28 MSA and CPRI/eCPRI
-
Data rate up to 25Gbps
-
Reach up to 20km on SMF
-
Low power consumption < 1.5W
-
Dual LC receptacles
-
Operating case temperature range: 0°C to +70°C
-
Single 3.3V power supply
-
RoHS compliant (lead free)

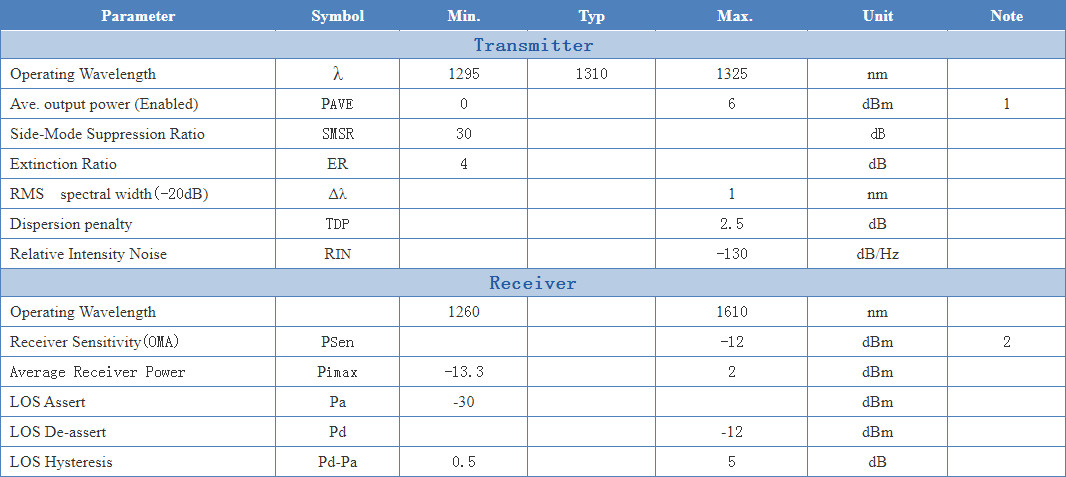

Specifications
| Item No. | HL-SFP28-LR | Vendor Name | Hilink |
| Form Type | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | 1310nm | Max Cable Distance | 20KM |
| Interface | LC duplex | Optical Components | DFB + PIN |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
- 25G LR Ethernet
- CPRI Option 10/eCPRI
-
eCPRI
Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
