Long Haul 1.25G CWDM 1270~1610nm 120KM APD Dual LC CWDM SFP Modules DDM
Hilink HLSCXX12L-CD120 CWDM 1.25Gbps SFP transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 120km.
Available 18 channels as CWDM for
1270nm 1290nm 1310nm 1330nm 1350nm 1370nm
1390nm 1410nm 1430nm 1450nm 1470nm 1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm
Features
- Hot-pluggable SFP footprint
- Power dissipation < 800mW
- RoHS-6 compliant (lead-free)
- Commercial temperature range 0°C to 70°C
- Single 3.3V power supply
- Maximum link length of 40km on 9/125mm SMF
- CWDM DFB laser transmitter
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
Details
| Item No. | CW-SFP-40 | Vendor Name | Hilink |
| Form Type | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | CWDM | Max Cable Distance | 40KM |
| Interface | LC duplex | Optical Components | DFB CWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | 0~5dBm | Receiver Sensitivity | <-25dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
- CWDM up to 10GBASE-ZR/ZW (with/without FEC)
- CWDM system Fiber Channel (with/without FEC)
- CWDM MUX links
- Other optical links,WDM system
1.25G CWDM Optical Transceiver series
| CWDM SFP (1.25G) |
| HLSCXX12L-CD40 | 1.25G | (1270-1610nm) | 40km | CWDM+PIN | 0~70℃ |
| HLSCXX12L-CD80 | 1.25G | (1470-1610nm) | 80km | CWDM+PIN | 0~70℃ |
| HLSCXX12L-CD120 | 1.25G | (1470-1610nm) | 120km | CWDM+APD | 0~70℃ |

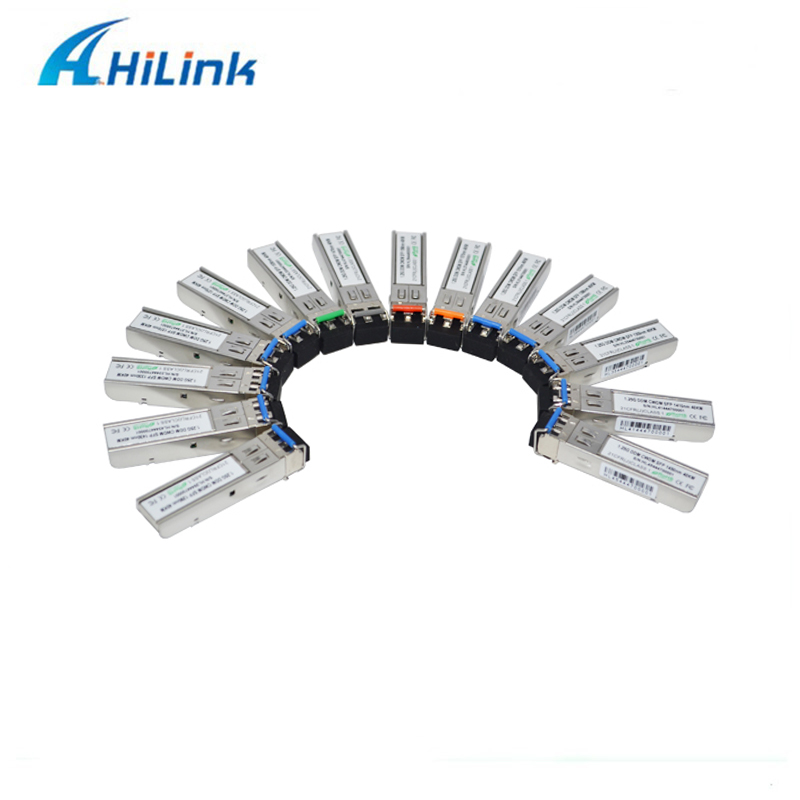

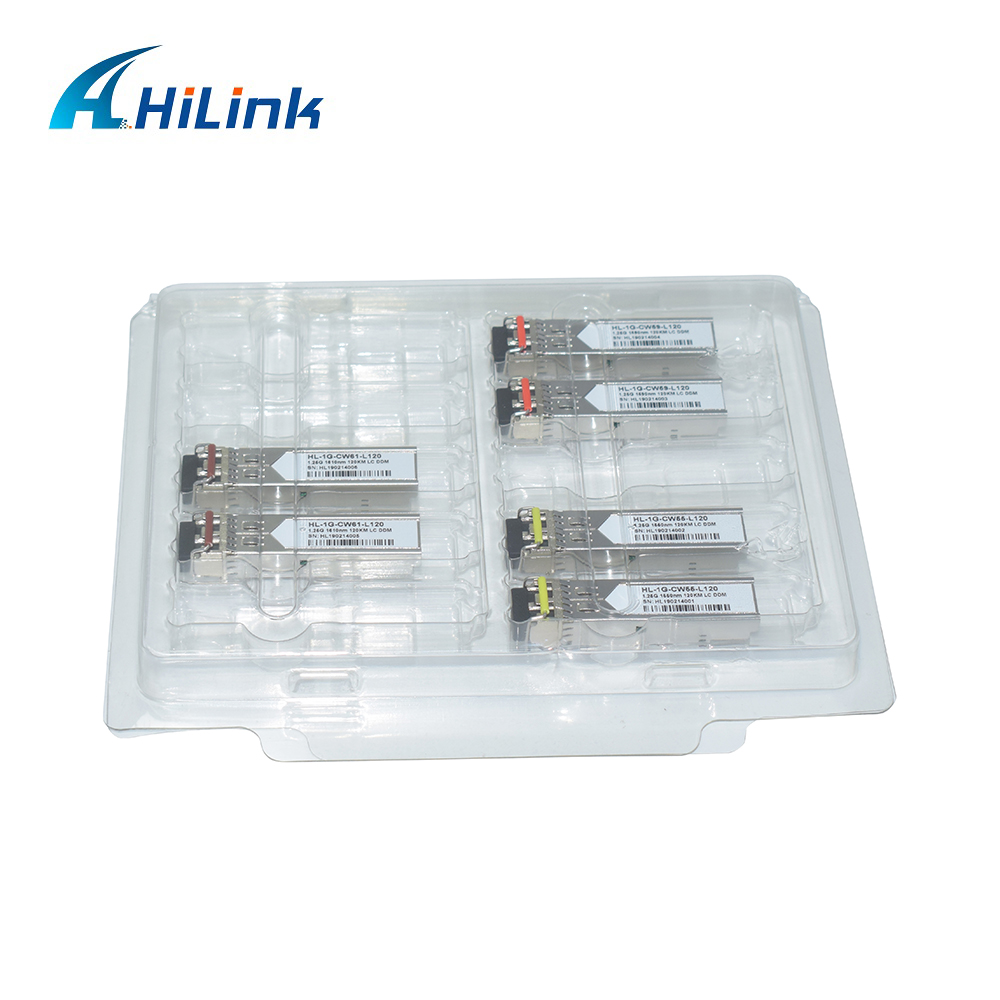

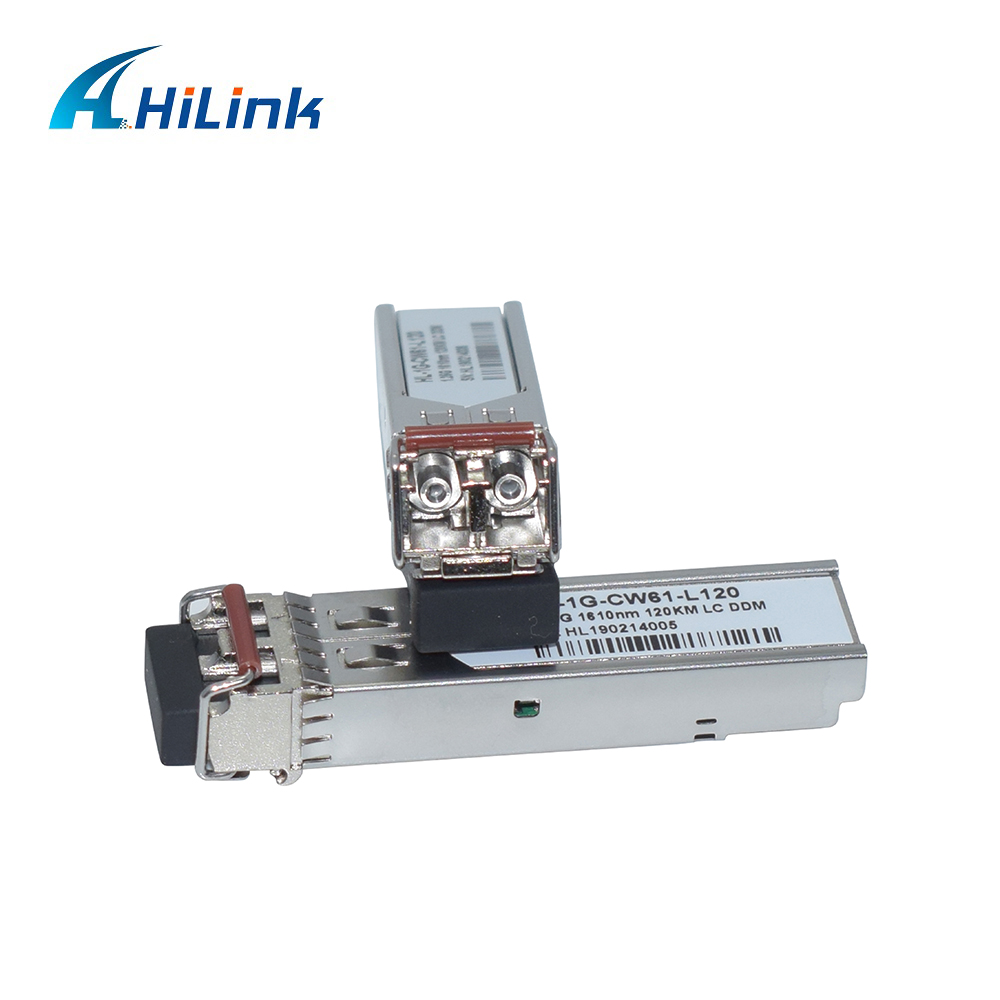

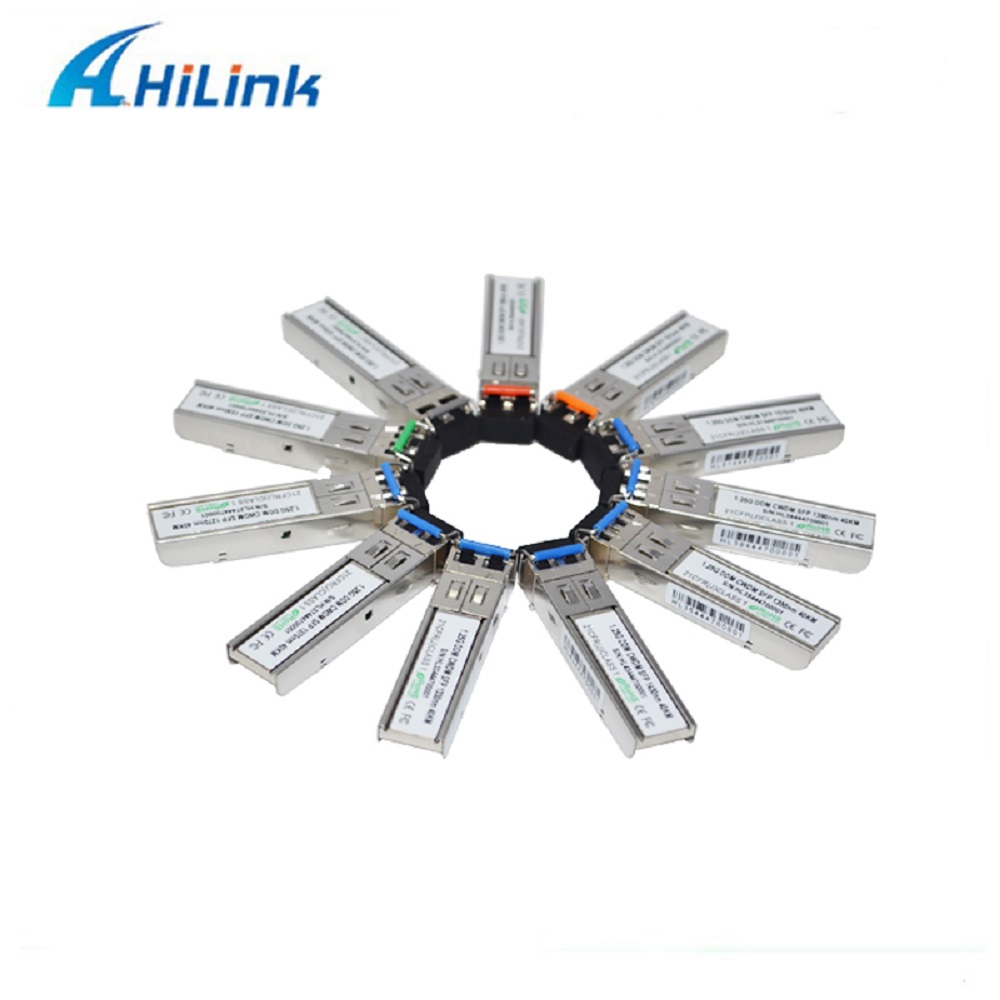

Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
