120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type

100GBASE-SR10 CXP MTP/MPO Max 120G SR10 300M MMF Transceiver Module

120G CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 120G Ethernet, Infiniband QDR DDR SDR 1G/2G/4G/8G/10G fiber channel and PCIE. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface.

Hilink 120G CXP transceiver modules is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.

Features

• 12-channel full-duplex transceiver module
• Hot Pluggable CXP footprint
• Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)
• Multirate capability: 1.06Gb/s to 10.5Gb/s per CH
• Unretimed CPPI electrical interface
• Requires 3.3V power supply only
• Low power dissipation: <4.5W
• Reliable VCSEL array technology
• Built-in digital diagnostic functions
• Commercial operating case temperature : 0°C to 70°C
• Single MPO connector receptacle
• RoHS-6 Compliant (lead-free)

Application

• 100GBASE-SR10 100G Ethernet
• Multiple 1G/2G/4G/8G/10G Fibre Channel
• Infiniband transmission at 12ch SDR, DDR and QDR
• Switches, Routers
• Data Centers
• Other 120G Interconnect Requirement

qsfp transceiver module

qsfp optical module

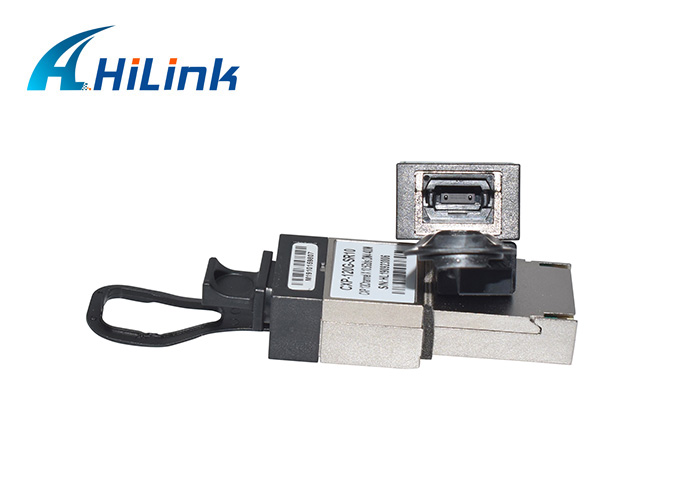

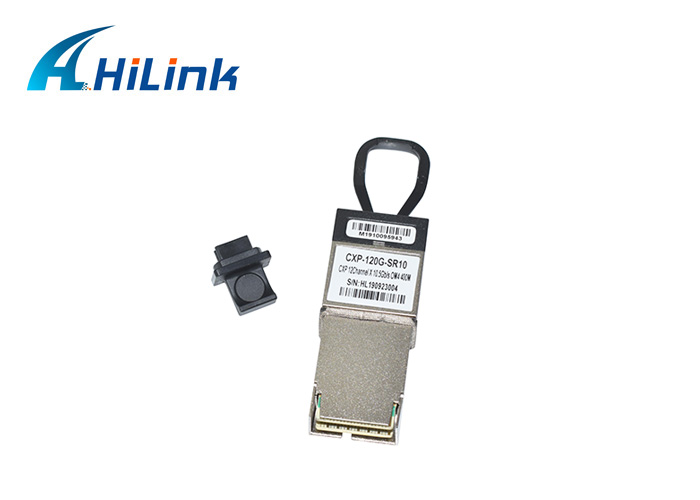

120G SR10 300M MMF Fiber Transceiver Multimode MTP/MPO 100GBASE-SR10 CXP Form Type Images
