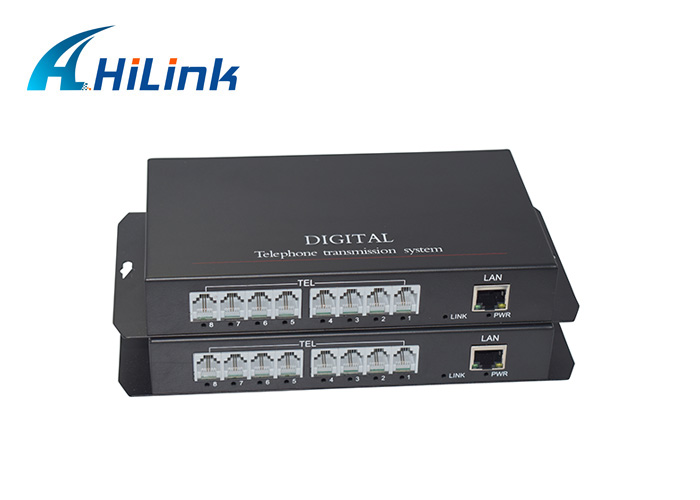

PCM Telephone Fiber Optic Media Converter 1ch 10/100M Ethernet AC220V Power Supply

The series of PCM Telephone Fiber Over Converter adopt advanced PCM design, call quality can up to broadcast level.

The PCM Telephone Fiber Over Converter can transmit 1 Channel to 8 Channel telephone with 1 Channel 10/100M Ethernet 10/100M Ethernet by one core. High reliability, Low power consumption and Cost-effective.



Fiber

◆ Multi-mode Fiber

50/125um, 62.5/125um( Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min)


Link budget: 16dBm



◆ Single-mode Fiber


8/125um, 9/125um (Maximum transmission distance: 40Km


Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)


Wave Length: 1310nm


Transmitting power: -9dBm (Min) ~-8dBm (Max)


Receiver sensitivity: -27dBm (Min)


Link budget: 18dBm



Telephone Number:

1-8 Channel



FXS Phone Interface:

Ring voltage: 75V

Ring frequency: 25HZ

Two-line Impedance: 600 Ohm (pick up)


Return loss: 40 dB



FXO Switch Interface:

Ring detect voltage: 35V

Ring detection frequency: 17HZ-60HZ

Two-line Impedance: 600 Ohm (pick up)

Return loss: 40 dB

Telephone Connector: RJ11



Ethernet Interface:

Date rate: 10/100Base-TX

Interface Type: RJ45

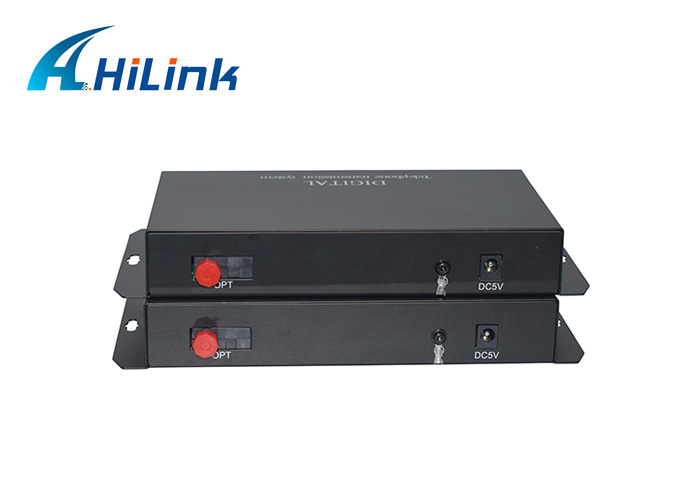

Optical Interface:

Fiber connector: FC, ST( optional)

Wavelength: TX1310nm, RX1550nm

Fiber type: single mode& multi-mode( optional)

Transmit power: -12dBm~ +3dBm

Receive sensitivity: -30dBm~ +20dBm

Link budget: 18dBm



Power

Power supply: AC220V；DC5V

Power consumption: ≤25W

MTBF: 100,000 hours



Dimension

Size: 133* 80*32mm(1/2/4 channel)

210* 105*30mm( 8 channel)

GW/NW: 1.5KG/0.75KG



Working environment

Working temperature: -20°C to + 70°C

Working Humidity:5%~95 % (no condensation)

Storage temperature:-40°C + ~ 85°C

Storage Humidity:5%~95 % (no condensation)
