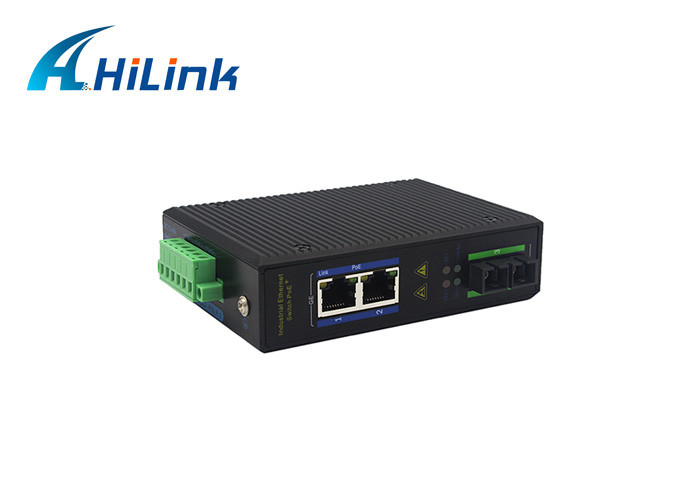

Hilink Industrial Media Converter, 2 Port 10/100/1000Base Ethernet and 1 port 1000Base SC Slot, Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power
Features
•2 Port 10/100/1000Mbps RJ45, 1 port 1000Base SC
• Automatic MAC address learning and aging
• 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
• LED indicators for monitoring power/link/activity
• Supports 10/100/1000Mbps-Full/Half-duplex
• Supports Wall-mount and DIN-Rail installation for lightning protection
• Supports Daisy-Chain connection
• Super lightening protection, IP40 protection.
• Excellent heat elimination without cooling fan.
• Redundant dual DC power inputs.
• Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
• Harsh industrial environment or higher requirement
• 40℃-85℃ operating temperature range.
| Technical Specification |
| Product Name | 2 Port 10/100/1000M Industrial Media Converter |
| Product Model | HLXD12G-SC20 |
| Interface | 2x 10/100/100Base-T Ethernet port + 1x 1000M SC slot |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Performance Specification | Bandwidth: 10Gbps Packet Buffer Memory:512K Packet Forwarding Rate:148800pps/port MAC Address Table: 2K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 2x12~48VDC (Terminal Block) |
Our Services
SFP compatible Brand: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Sales Service:
1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.
5. Guarantee:
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).
6. Technician support:
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
7. After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Notes:
Here is one type product, please contact me to get the modules you are interested in.
We also have CWDM/DWDM Mux/Demux Module, CWDM/DWDM/BiDi SFP, QSFP28/X2, FWDM and so on.
Send me an inquiry with your requirements directly or add my skype(daisydjinn) for further informations.
It is warmly welcomed if you share the ideas (solutions) with us, we will try to do what you request.
