1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible

Brand Name : Hilink

Model Number : HL-25G- SFP28

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000pcs/month

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Data rate : 25Gbs

condition : New

Distance : 10km

Wavelength : 1310

Warranty : 3 years

Contact Now

cisco compatibble 25Gbs SFP28 SFP CWDM 1310nm 10km optical transceiver modules













The SFP28 transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.







Product Features



Up to 25.78Gb/s data links
CWDM DFB laser and PIN receiver
Up to 10km on 9/125um SMF
Hot-pluggable SFP footprint
Digital diagnostic capabilities
Class 1 laser safety certified
Cost effective SFP28 solution, enables higher port densities and greater bandwidth
RoHS compliant and lead-free
Single +3.3V power supply
2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
All-metal housing for superior EMI performance
Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC









Part Number Ordering Information



Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

HLSC-FLxx11C

25.78

1270~1370

10km SMF

0~70 commercial

HLSC-FLxx11E

25.78

1270~1370

10km SMF

-10~80 Extended

HLSC-FLxx11I

25.78

1270~1370

10km SMF

-40~85 Industrial











Transceiver functional diagram



1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible









Applications



High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
Inter Rack Connection











Picture Show



1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible

Pin Assignment and Pin Description



1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible













Digital Diagnostic Meory Map



The digital diagnostic memory map specific data field defines as following.

The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.





1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible















OEM and ODM

OEM/ODM order is available

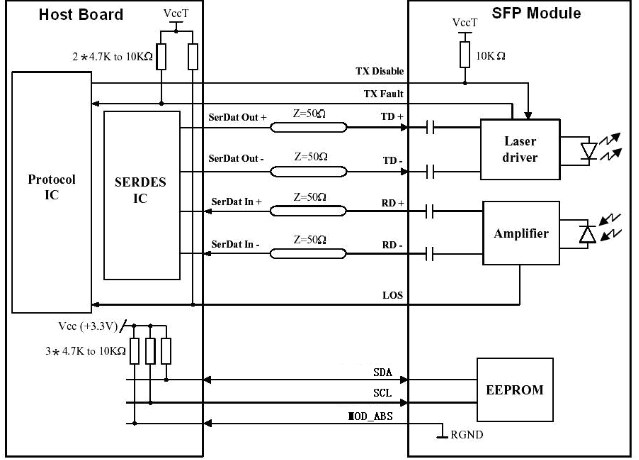

Recommended Interface Circuit





1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible















Mechanical Dimensions



1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible

















What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei, etc.









Company Information:



1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible







Shipment

International Express: TNT, EMS, DHL, UPS ,FedExand so on. It takes 3-7 days.

1310nm 10km Optical Transceiver Modules 25Gbs SFP28 SFP CWDM Cisco Compatible
